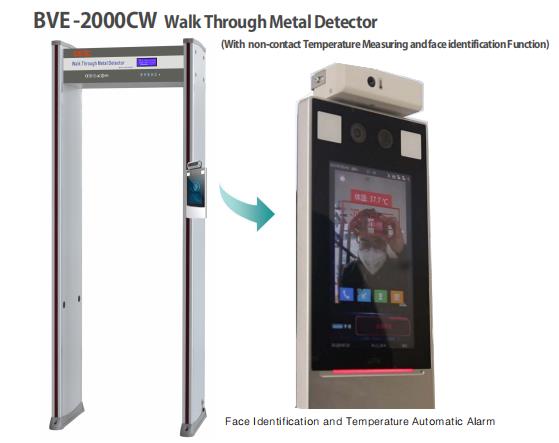

The BVE-2000CW high quality, high performance walk through metal detector integrated with thermal imaging, face identification technology, multiple detection zones. When the passengers entering the detection area, the equipment could do fast detection of head temperature, showing sound and light alarming for the temperature higher than set value and prompt alarming, pinpointing the contraband goods location with high-brightness LED indicators; could meet the high throughput security checking use with high recognition rate; comply with applicable electrical equipment safety standards. Suitable to help the society to fight against COVID-19.
Product Feature:
• Intelligent body temperature measuring to prevent lost alarm;
• Snapshot abnormal body temperature and alarm automatically;
• Multiple detection zones with high-brightness LED indicator lights, pinpointing hidden location of contraband goods;
• Unique detection zones sensitivity adjustment display, fast, direct and accurate;
• Strong anti-mechanical/ electromagnetic interference ability; could adapt into complex working environments;
• High detection speed could meet the security checking situation in many places with high throughput;
• Color liquid crystal display menu, easy to operate;
• The cable locates in the bottom of the walk through metal detector, cable alignment is safe and convenient.
The BVE-2000CW is an advanced body temperature-measuring, face-recognition functional walk-through metal detector for screening passengers, visitors whether the passenger get fever or not and is there any threats like guns, knives, explosives devices, etc. they bring with. BVE-2000CW is an ideal security checking solution for various installations like: Public transportation operations, Schools, Embassy, Stadiums, Government Buildings, Power Plants, Airports, Customs, Special Events, Military Bases, Army, Law Enforcement, Courts, Prisons, Banks, Night Clubs, Entertainment Venues, Factories, Critical Infrastructures or wherever body temperature-measuring and security solution is required.
|
Model |
Comment |
|
BVE-2000CW |
Walk through metal detector with Face recognition access control terminal with digital temperature measurement module, including 1PC -213H face recognition access control terminal and 1PC 32-NB digital detection module |
|
Features Parameter |
Description |
|
Operation System |
Linux |
|
Face Recognition Accuracy Rate |
>99% |
|
Face Recognition Time |
200ms |
|
Face Capacity |
10,000 |
|
Card Capacity |
100,000 |
|
Storage Capacity |
4GB |
|
Event Capacity |
8,000 (with images) |
|
Measurement Range |
30℃ - 45℃ |
|
Measurement Accuracy |
0.1℃ |
|
Measurement Deviation |
No more than 0.3℃ |
|
Measurement Distance |
1m |
|
Authentication Mode |
Face Whitelist:(1: N) |
|
Card:(1:N) |
|
|
Face +Body temperature |
|
|
Mask Detection |
|
|
Door Opening Method |
Face, Password, QR code, Card |
|
Communication Mode |
10/100Mbps adaptive network port |
|
Card Type |
Mifare 1 Card |
|
User Management |
Support user library addition, deletion, update |
|
Record Management |
Support local recording and real-time upload |
|
Interface |
LAN*1, Wiegand Input*1, Wiegand Output*1, RS485*1, Alarm Input*2, Alarm Output*1, USB2.0*1, Lock*1, Door Contact*1, Exit Button*1 |
|
Power Supply |
Input 12V +/-25% DC |
|
Screen |
Touch Screen, Size:7 inch, Resolution: 600*1024 |
|
Camera |
Dual Lens, 2MP, 1080P |
|
Supplement Light |
LED soft light and infrared light |
|

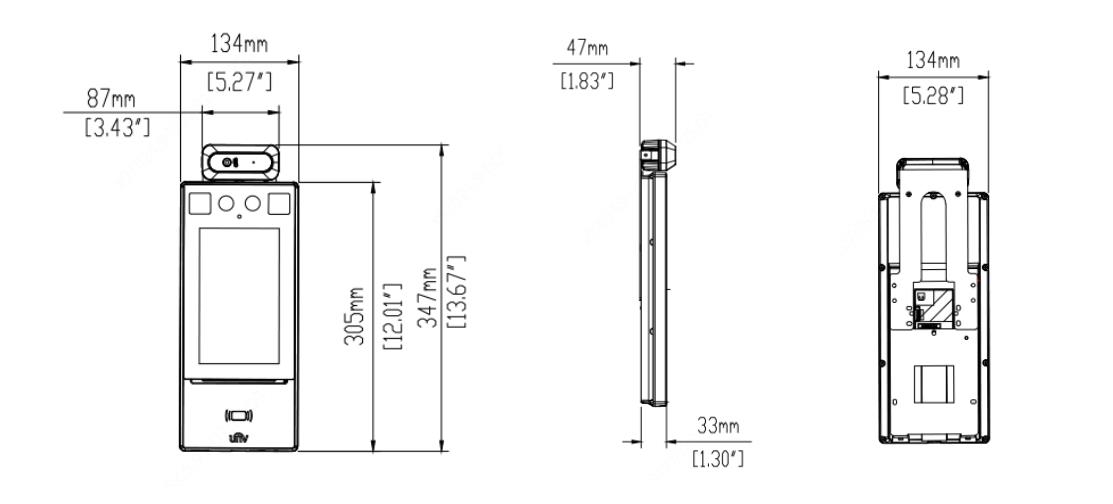

Dimensions (L*W*H) |
For terminal : 134.0mm*33.0mm*305.0mm |
|
Working Environment |
For terminal: -20℃-65℃, Relative Humidly<95% (non- condensing) For module: 15℃-30℃ |
|
Protection Level |
Both terminal and module: IP 54 |
|
Application Situation |
Indoor, No wind |
|
Exterior Size |
2230mm(H)X820mm(W)X500mm(D) |
|
Interior Size |
1990mm(H)X700mm(W)X500mm(D) |
